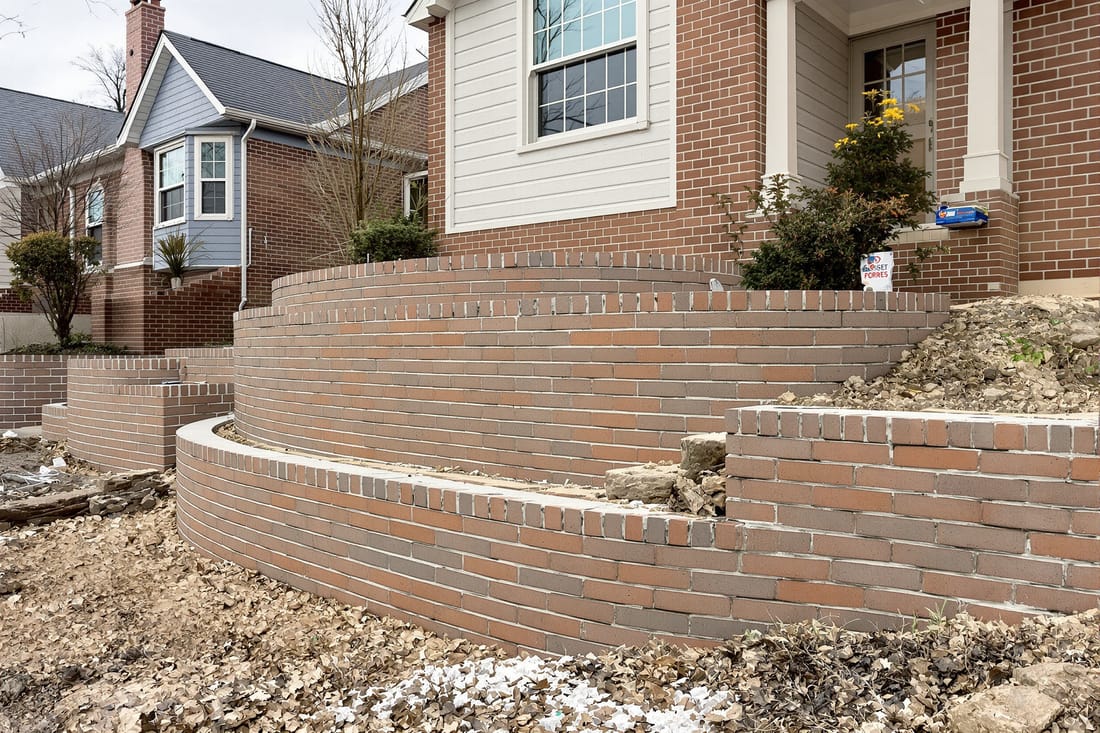

We design and build brick retaining walls in San Antonio, TX that control erosion and enhance your landscape. Our masons ensure proper footing, drainage, and alignment so your wall stays straight and strong. Whether you need a low garden border or a tall structural wall, we tailor the layout to your yard.
Legendary Masonry San Antonio provides professional brick retaining walls throughout San Antonio, TX, Texas and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 210-939-7321 or request your free quote.
Brick Retaining Walls Built for San Antonio Yards
Brick retaining walls in San Antonio do more than hold back soil. When they are planned correctly they help control drainage during heavy thunderstorms, keep landscaping from washing out on sloped lots, and create level patios and planting areas that are comfortable to use year round. At Legendary Masonry San Antonio, we design each brick retaining wall around your specific yard conditions instead of forcing a generic layout onto your property.
Our team works mainly in neighborhoods with clay and caliche soils, which expand and contract as moisture changes. That movement is one of the main reasons poorly built walls in our area crack or lean within a few years. We address that from the start with proper footing depth, soil preparation, and drainage. Whether your home is in Stone Oak, Alamo Heights, or outside Loop 1604, we take time to study how water moves across your lot before we sketch the first layout line.
You can use brick retaining walls to carve out usable areas on a hillside, separate a pool deck from a raised planting bed, or clean up an eroding side yard. We frequently replace failing timber or railroad tie walls with brick that will not rot, warp, or attract insects. Every project is tailored to your elevation changes, your preferred style, and how you actually use the space.
Our Site Evaluation and Design Process
A successful brick retaining wall starts with a careful site evaluation, not with picking a brick. When Legendary Masonry San Antonio visits your home, we walk the full area you want to retain, check how steep the slope is, and note any signs of existing movement such as cracks in patios, doors that stick, or fence posts leaning. This helps us understand how much lateral pressure the new wall will need to resist.
We then look at drainage patterns. In San Antonio, many lots receive runoff from a neighbor's higher yard or from the street. We check where water currently enters and exits, and where it tends to puddle after a rain. From there, we decide if your brick retaining wall needs French drains behind the wall, surface drains in front of it, or a combination of both.
During design, we discuss height, length, and any curves or corners. Taller walls may require stepped terraces instead of a single vertical face, especially if you want planting areas between levels. We also cover safety issues, such as adding guard rails or seating walls on top if the drop on the low side is significant. When a wall reaches a certain height or carries extra loads like driveways or parking areas, we may recommend engineering input and obtain any needed city approvals before construction begins.
Material Options and Brick Styles for Retaining Walls
Brick retaining walls can be strictly functional or can become the main visual feature in your yard. Legendary Masonry San Antonio helps you choose materials that fit both your budget and the surrounding architecture. Most homeowners here choose one of two approaches: a structural core built with concrete masonry units, with brick veneer for appearance, or a full brick gravity wall for shorter heights where the wall thickness is sufficient to resist soil pressure.
For the visible brick, we source from regional manufacturers that hold up well in our hot, sunny climate. Common choices include traditional red face brick that matches older San Antonio homes, wire cut brick in neutral tans that blend with limestone houses, and tumbled brick with softer edges for a more historic look. We can often match or closely complement the brick on your home so the retaining wall looks intentional instead of like an afterthought.
Mortar color and joint profile also affect the final look. A light mortar joint can make the wall appear larger and more textured, while a darker mortar can help the wall recede visually. Joint options include concave, flush, and raked. For caps, we may use rowlock brick, cast stone, or concrete caps, especially where people will sit. If you prefer a low maintenance finish, we guide you on whether a breathable sealer makes sense for your specific brick choice and exposure to sun and irrigation.
How We Build Brick Retaining Walls Step by Step
Once the design is set, Legendary Masonry San Antonio follows a clear construction process so your brick retaining wall performs as expected. We start by marking the wall footprint and excavating for the footing. In our area, that usually means digging below the topsoil into stable subgrade, then forming and pouring a reinforced concrete footing wide enough to support the wall thickness and the lateral load from soil. For walls that support driveways or steep slopes, we often use more steel reinforcement and deeper footings.
After the footing cures, we install any required drainage components. This typically includes a perforated drain pipe placed at the base of the wall on the back side, wrapped in filter fabric, and surrounded with clean gravel. We also add weep holes through the face at set intervals so trapped water can escape instead of pushing on the wall.
For structural walls, we build a concrete block core first, with vertical rebar tied into the footing and grouted solid where needed. The brick veneer is then tied back to this core with metal ties at regular spacing. For low walls where a solid brick design is sufficient, we lay brick in bonded patterns that distribute load, always checking level and plumb. As we go up, backfill is placed in compacted lifts behind the wall rather than dumped all at once, which reduces future settlement. We finish with cap units, clean the brickwork, and grade the surrounding soil so that surface water flows away from the wall instead of toward it.
What Affects the Cost of Brick Retaining Walls
Homeowners often ask why one retaining wall estimate can be much higher than another. The largest cost drivers are height, length, site access, and drainage needs. A 2 foot decorative garden wall that we can reach easily from the driveway is very different from a 6 foot structural wall in a tight backyard with no vehicle access. At Legendary Masonry San Antonio, we explain each factor so you understand what you are paying for.
Height strongly affects cost because taller walls need deeper footings, more block or brick courses, additional steel reinforcement, and more detailed drainage. Soil type also matters. Expansive clay or areas with existing erosion may require more excavation or replacement of poor material with compacted base.
Access issues in San Antonio's older neighborhoods can also increase labor. If we must move all material by wheelbarrow through a narrow side yard, the project will take longer than one where we can bring in small equipment. Drainage components like French drains, extra gravel, and tie in to existing yard drains add material cost but often prevent costly failures later. During your estimate, we walk you through each of these conditions on your property and provide options when possible, such as terracing multiple lower walls instead of building one tall wall.
Common Problems With Retaining Walls and How We Prevent Them
Many of our brick retaining wall projects start with a call about an existing wall that is cracking, bowing, or leaking muddy water. In San Antonio, we see several recurring problems: walls built without proper drainage, shallow or missing footings, and walls that were never designed for the actual height and load they are carrying.
When we inspect a failing wall, we look for bulges, stair step cracking in the brick, and separation between the wall and adjacent patios or sidewalks. If we can safely repair and reinforce the structure, we will explain that option. In many cases with older timber or unreinforced block walls, the safest solution is to remove and rebuild using correct methods.
Legendary Masonry San Antonio prevents these issues in new construction by always including a drainage plan, using reinforced footings appropriate for the wall height, and paying attention to compaction behind the wall. We avoid stacking new walls directly above old ones or placing heavy loads like parking pads right behind a wall without factoring that into the design. For clients who irrigate heavily, we adjust drain layouts so sprinkler overspray does not constantly saturate the soil behind the wall and increase pressure.
What to Expect When You Hire Legendary Masonry San Antonio
From first call to final cleanup, we keep the process straightforward. When you contact Legendary Masonry San Antonio about brick retaining walls, we schedule an on site visit, listen to your goals, and gather measurements and photos. Within a few days, we provide a detailed written proposal that outlines the wall height and length, materials, drainage components, estimated timeline, and total cost with no hidden fees.
Before work begins, we confirm utility locations, obtain any necessary permits, and coordinate with you on access and parking. During construction, you can expect a neat jobsite, daily cleanup of loose materials, and clear communication about progress or weather delays. We do not shuffle your project between multiple crews that do not know your property.
At completion, we walk the project with you, review the wall, drainage features, and any maintenance tips specific to your yard. For most brick retaining walls, upkeep is simple: keep surface drains clear of leaves, avoid planting large trees too close to the wall, and call us if you ever notice unusual movement. Our goal is that your retaining wall performs quietly in the background for decades while improving the way you use your outdoor space.
