We construct commercial masonry retaining walls in San Antonio, TX that support grades around buildings, parking lots, and plazas. Working from engineered plans, we install block or brick faced walls with proper drainage and reinforcement. Our focus is long term stability and a clean finished appearance.
Legendary Masonry San Antonio provides professional commercial masonry retaining walls throughout San Antonio, TX, Texas and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 210-939-7321 or request your free quote.
Commercial masonry retaining walls built for San Antonio businesses
Legendary Masonry San Antonio designs and builds commercial masonry retaining walls that are engineered for real-world Texas conditions and daily business use. We focus on walls that control soil movement, protect structures and pavement, and create usable space on sloped commercial properties.
Whether you manage a shopping center off Loop 1604, an industrial yard on the South Side, or a medical facility in the Medical Center area, your retaining wall must handle heavy loads, erratic drainage, and intense sun without shifting or cracking. Our team combines local geotechnical know-how with structural masonry expertise so your wall supports traffic, utilities, and landscaping for decades.
From first site walk to final inspection, we treat every commercial retaining wall as a structural asset, not just a landscaping feature. You get clear explanations of choices, stamped engineering when required, and construction methods that match San Antonio soils and codes.
Retaining wall design that fits your site, loads, and look
Effective commercial masonry retaining walls start with design, not block selection. We begin with an on-site assessment that looks at slope angle, existing drainage, nearby buildings, parking areas, and any visible signs of soil movement like cracked pavement or leaning fences.
We coordinate with a structural or geotechnical engineer when wall height, surcharge loads, or city requirements call for it. Together we determine wall type (gravity, cantilevered, or mechanically stabilized), footing depth, and reinforcement details. For many San Antonio commercial projects, we are dealing with a mix of shallow caliche, clay pockets, and fill soil that demands careful footing excavation and compaction.
Aesthetics still matter on commercial sites. We will review face options like split-face CMU, architectural block with integral color, stone veneer over a structural block core, or simple smooth CMU when the wall is mostly hidden. For retail or hospitality properties, we can integrate seating edges, planter tiers, or matching masonry elements so the wall supports your brand image as well as your site.
Drainage planning is non-negotiable in this design phase. We size and locate weep holes, perforated drain lines, and gravel backfill zones for the kind of intense storm bursts San Antonio sees, especially during late summer and early fall.
Materials and construction methods that hold up in Texas conditions
Legendary Masonry San Antonio works primarily with structural concrete masonry units (CMU), segmental retaining wall (SRW) systems, and cast-in-place concrete with masonry facings, depending on structural requirements and budget.
For structural CMU walls, we excavate to the engineered footing depth, then place and compact base material in lifts to the specified density. Formwork is set for the footing, reinforcing steel is tied per the engineer's schedule, and concrete is placed and vibration consolidated to avoid voids. Once the footing cures, we lay block in running bond, maintain level and plumb with each course, and install vertical and horizontal reinforcement in grouted cells at the prescribed spacing. Control joints are added to manage thermal movement in our high-temperature climate.

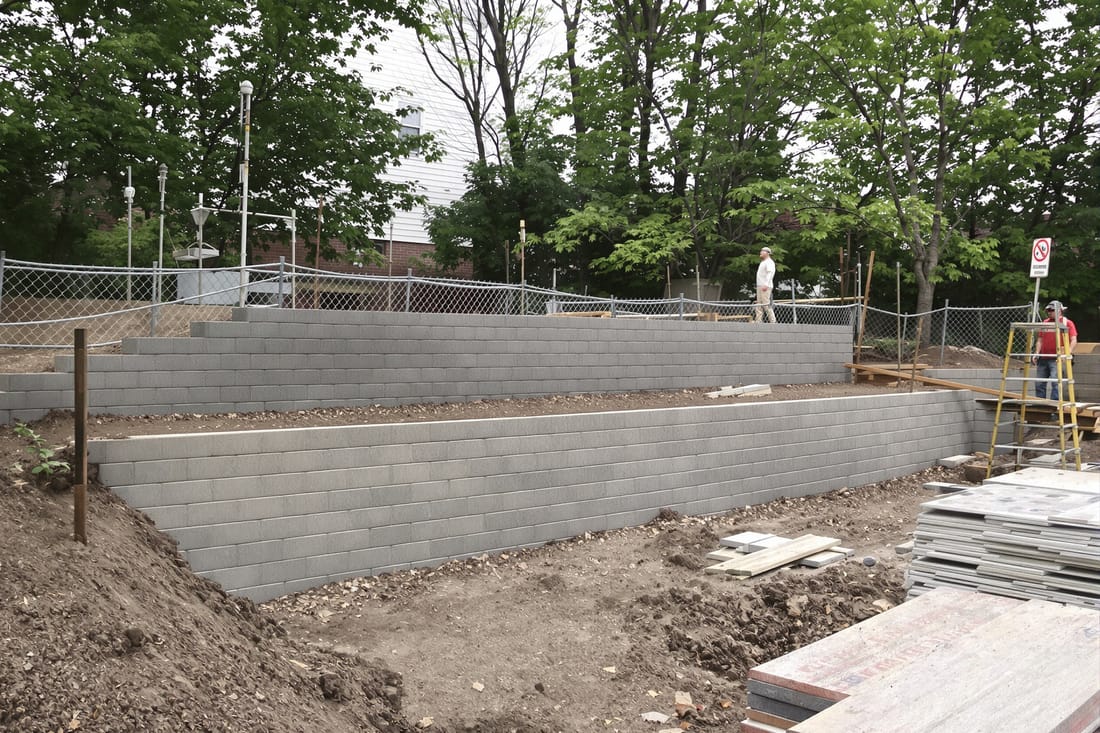

For segmental retaining walls, we start with a laser-leveled base, often using crushed limestone that we compact to at least 95 percent Proctor density. Each course is laid with proper setback, and we integrate geogrid reinforcement layers into the backfill where the engineering calls for it. This is especially common behind parking lots or near drive aisles where vehicle loads push against the wall.
When a more refined architectural look is needed, we may use a structural concrete or CMU core and then apply a stone or brick veneer. This allows the wall to handle substantial loads while giving the visible faces a higher-end appearance that matches building facades or entry monuments.
Site preparation, drainage, and backfill that prevent failures
Many retaining wall problems in San Antonio come from what is behind and below the wall, not from the visible face. That is why we dedicate significant time to excavation, subgrade prep, and drainage.
We begin by stripping vegetation, roots, and unsuitable fill. Any soft spots are undercut and replaced with compacted select fill or base material. If existing utilities are present, we coordinate with the owner and 811 to verify locations and protect lines. For commercial projects, this often includes fire lines, irrigation, and telecom conduits that cannot be disturbed.
We install perforated drainpipe at the base of the wall, sloped to daylight or to a storm connection point, then wrap it in filter fabric where soils demand it. Clean, angular gravel is placed behind the wall for a defined thickness, which allows water to move freely and reach the drainpipe. Weep holes are installed at calculated intervals for solid CMU or concrete walls.
Backfill is placed in lifts, compacted with appropriate equipment, and kept level side to side so the wall is not loaded unevenly. We never allow heavy equipment to operate too close to the top of the wall before backfill has reached grade and reached specified compaction, which is a common cause of early movement on commercial sites.
Local permitting, inspections, and code requirements in San Antonio
Commercial masonry retaining walls in San Antonio often require more documentation than property owners expect. Legendary Masonry San Antonio helps you navigate the process so your project does not stall mid-construction.
In the City of San Antonio, retaining walls over a certain height or supporting structures, parking, or public access typically require a building permit and engineered drawings. We coordinate with your civil engineer, architect, or directly with a structural engineer when needed to produce sealed plans that meet International Building Code requirements as adopted locally.
For projects in areas like Leon Valley, Alamo Heights, or unincorporated Bexar County, requirements differ slightly. We verify which jurisdiction applies, what submittals they need, and whether a drainage study or stormwater management review is triggered by your wall or related site work.
We schedule and host required inspections, including footing inspections, reinforcement and grout inspections, and final approvals. If your commercial site is part of a managed development with an HOA or property owners association, we can provide material samples, elevation drawings, and color selections that align with any design guidelines or deed restrictions.
Cost drivers and budgeting for commercial retaining wall projects
The cost of commercial masonry retaining walls varies widely because the structure is so site specific. Legendary Masonry San Antonio provides detailed proposals that explain what is driving your price so you can make informed decisions.
Key cost drivers include wall height, total length, soil conditions, access for equipment, and whether the wall is supporting traffic loads or structures. A short wall used to shape landscaping in front of an office building will be very different in cost from a tall wall holding back a cut next to a loading dock.
Soil conditions around San Antonio can change quickly from lot to lot. Hard caliche may require heavier excavation equipment, while loose fill may require deeper footings and more backfill conditioning. Limited access, common in built-out commercial corridors, can increase costs because we may need smaller equipment or hand work for parts of the job.
Finishes and aesthetic upgrades also affect the budget. Split-face block, decorative caps, integrated stairs, guardrails, or lighting all add cost but can improve functionality and appearance. We can separate structural pricing from aesthetic options so you can prioritize based on your project goals and ROI.
How Legendary Masonry San Antonio manages risk and long-term performance
Commercial retaining walls must perform safely for a long time, often adjacent to pedestrians, vehicles, and structures. Our approach is to identify and manage risks early, then build in durability features wherever practical.
We review potential surcharge loads from parked trucks, delivery routes, dumpsters, and building foundations before finalizing design. If a wall must coexist with future expansion, we plan for that in the layout and reinforcement. For sites with a history of drainage problems, we coordinate with your civil engineer to ensure the wall design supports the overall stormwater strategy, not just the immediate area.
Construction quality control is central to performance. We monitor compaction, verify steel placement against drawings, and document grout placement. For taller walls or critical locations, we encourage special inspections and material testing, such as concrete cylinder breaks and grout sampling, to build a verifiable record.
After completion, we explain maintenance items that are unique to commercial masonry retaining walls. These include keeping weep holes and surface drains clear, avoiding unplanned additional loads near the wall, and watching for early signs of settlement such as small separations at joints or cracks in adjacent pavement. With proper design, construction, and basic maintenance, your wall should function without major intervention for decades.
